Multirack Screen
Screening Solution
ArCh Enviro Equipment Private Limited
104/105, Veda Commercial Complex, TP-13
Canal Road, Chhani, Vadodara – 390002
Gujarat, India
Phone: +91 98939 70123
Email: info@archenviro.com
Product Overview

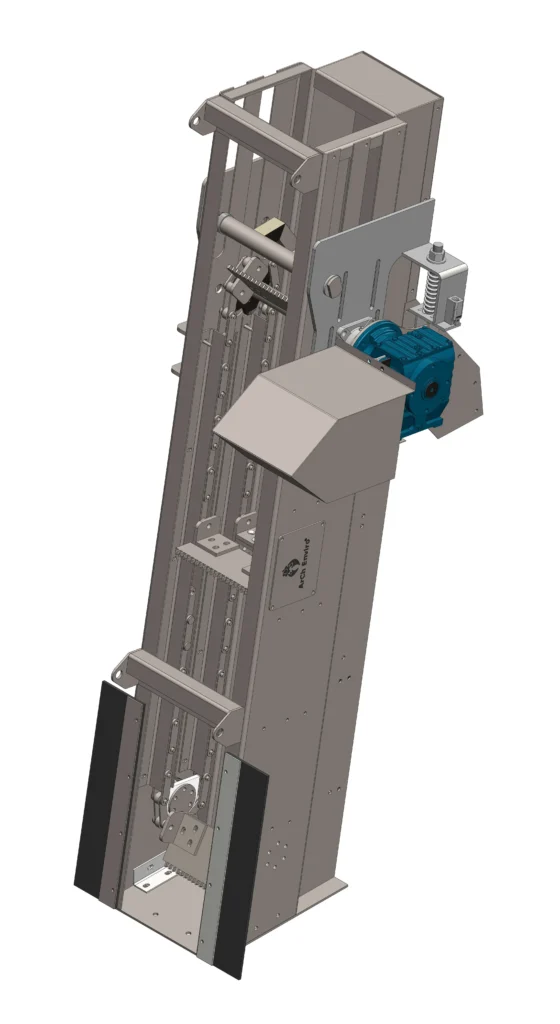

The Multirack Screen is an automatic front-cleaning mechanical bar screen designed for medium to coarse solid separation in wastewater treatment plants.
It works efficiently in the headworks of municipal and industrial STPs or ETPs, where bulkier solids need to be captured and removed early.
For fine screening requirements, it is commonly used ahead of a Step Type Fine Screen or a Screw Screen, ensuring better overall filtration and equipment protection downstream.
Key Features
- Automatic multi-rake cleaning system
- Suitable for high-flow coarse screening
- Available in AISI 304 or 316 stainless steel construction
- Low power consumption with energy-efficient motor
- Robust design for long-term operation in harsh environments
- Minimal maintenance required
Applications
ArCh Enviro’s Multirack Screen is widely used in:
- Municipal Sewage Treatment Plants (STPs)
- Industrial Effluent Treatment Plants (ETPs)
- Food processing and paper industries
- Chemical and textile processing plants
- Pump station intake screening
In scenarios where manual cleaning is still viable due to lower flow rates or limited budgets, the J-Type Manual Screen offers a cost-effective alternative. For additional screening in tertiary stages, a Parabolic Screen can be a suitable choice.
Technical Specifications
| Parameter | Specification |
|---|---|
| Frame Material | Stainless Steel AISI 304 / 316 |
| Bar Spacing | 3 mm – 100 mm |
| Channel Width | 400 mm – 3000 mm |
| Installation | Channel or wall-mounted |
| Rake Mechanism | Motor-driven with multi-arm rakes |
| Cleaning Method | Automatic with chain system |
Note: Use only verified specifications based on selected model and site conditions.
Working Principle
The screen consists of multiple vertical rake arms mounted on a chain system that moves continuously. As solids accumulate, the rakes collect and lift them upward, discharging them via a scraper mechanism.
In installations with fibrous or sticky solids, pairing the system with a Brushing Screen can improve performance by reducing the chances of clogging or buildup.
Why Choose ArCh Enviro
ArCh Enviro provides a full range of wastewater treatment equipment designed for industrial and municipal applications. From mechanical screening to aeration and sludge dewatering, our solutions are engineered to deliver long-term efficiency and reliability across diverse sectors.
Operational Advantages
- Prevents downstream clogging
- Reduces load on biological treatment systems
- Enhances equipment life and plant efficiency
- Custom-built to fit existing channels
- Long service life with low operational cost
Frequently Asked Questions
Q1. What is the purpose of a multirack screen?
A multirack screen removes large solid waste from influent wastewater to protect pumps, valves, and downstream systems.
Q2. Is this screen suitable for high-flow plants?
Yes, ArCh Enviro’s Multirack Screen is ideal for high-flow rate applications due to its automatic operation and strong rake mechanism.
Q3. Can I install this in an existing channel?
Yes, the system is custom-fabricated to match your plant’s channel dimensions.
